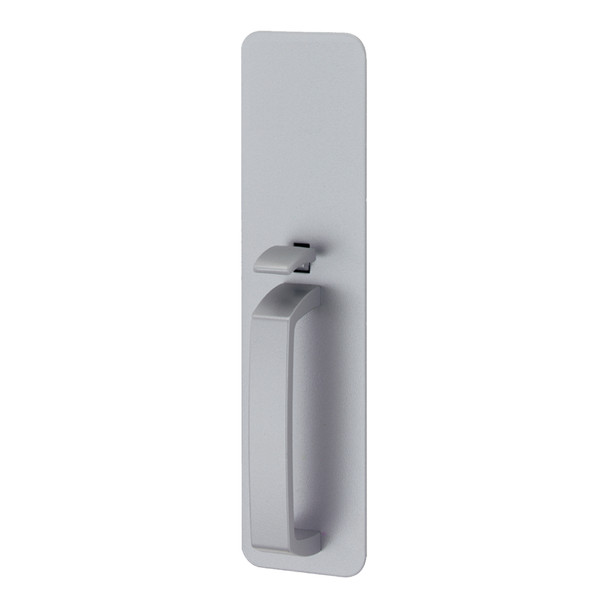

Von Duprin Grade 1 Exit Trim for 22 Series Devices (230TP-BE 689)

Von Duprin Grade 1 Exit Trim for 22 Series Devices (230TP-BE 689)

• Passage Function
• Thumbpiece Pull
• Aluminum Painted Finish
• Field Reversible

Technical Specs:

• Device Type: Trim
• Mechanical Function: Passage
• Hand: Non-Handed
• Includes Trim: Yes
• Trim Type: Pull
• Trim Design: Escutcheon Pull
• Trim Part No: 230TP-BE 689
• Includes Cylinder(s): No
• Cylinder Type: Non-Keyed
• Door Material: Metal or Wood
• Door Thickness: 1-3/4” - 2-1/4”
Fire Rated: No
• Reversible: Yes
• Product Type: Exit Device Trim

Resources:

• Von Duprin Finishes Chart
• M996L/L-BE Motor Driven Electrified Trim Data Sheet

Instructions & Manuals:

• Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
• 110, 210, 230 Series Trim Service Manual

Templates:

• 230TP & 230TP-BE Trim Wood Door Template
