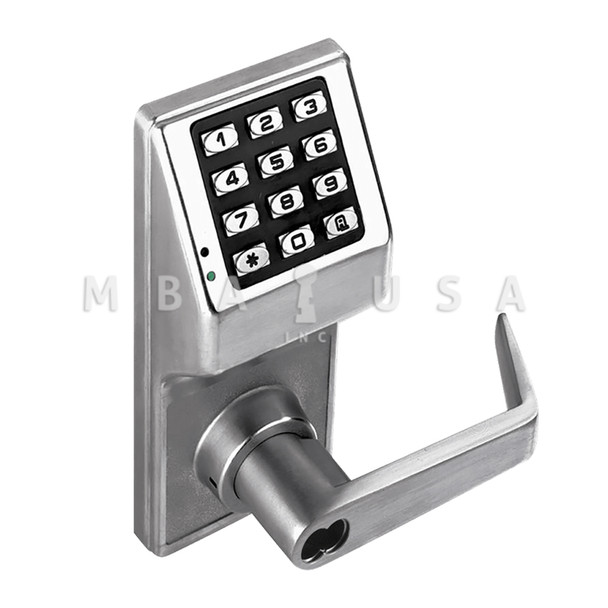

Alarm Lock Trilogy DL2700, Grade 1 Pushbutton Cylindrical Lock (DL2700IC US26D)

(No reviews yet) Write a Review
Calculated at Checkout
  • Alarm Lock Trilogy DL2700, Grade 1 Pushbutton Cylindrical Lock (DL2700IC US26D)
  • Alarm Lock Trilogy DL2700, Grade 1 Pushbutton Cylindrical Lock (DL2700IC US26D)
  • Alarm Lock Trilogy DL2700, Grade 1 Pushbutton Cylindrical Lock (DL2700IC US26D)
Frequently bought together:


Alarm Lock Trilogy DL2700, Grade 1 Pushbutton Cylindrical Lock (DL2700IC US26D)

  • Grade 1 Pushbutton Cylindrical Lock
  • 100 Users
  • Straight Lever
  • SFIC Prep
  • Less Core
  • Satin Chrome Finish

DL2700 Cylindrical Pin Locks: Trilogy® T2 standalone digital cylindrical keyless door lock.
Alarm Lock's most popular keypad door lock – now with more codes & power. More codes with up to 100 3 to 5 digit codes, 1 master, 10 managers, 90 basic users, and 3 one-time service codes. 5AA battery operated; 175,000 cycles, typ. For outdoors, specify WP Weatherproof models -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C).

  • More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes.
  • 5AA battery operated; 5 years battery life or 200,000 cycles, typ.
  • For outdoors, specify WP weatherproof models -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
  • Ideal for schools, healthcare, pharmacies, rental properties, offices, retail and airports.


  • Grade 1 Durability. Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
  • Multi-level user codes: Master, 10 managers, 90 users, 3 service codes
  • Up to 100 different user codes (3-6 digits)
  • 100% keypad programmable with a fingertip
  • Individual, group or total user lockout codes
  • Easy passage mode by manager and/or master
  • Easy to install in about an hour, retrofits cylindrical knobsets and digital locks using slightly modified ANSI 161 Series Prep
  • Standalone battery operated; 5 AA batteries rated at  200,000 cycles
  • Non-handed for easy installation and versatility
  • 2-wire remote override
  • Visual and audible entry indicators
  • WP Models for weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151°F to -31°F (+66°C to -35°C) (Note: all Trilogy models are available in WP weatherproof and non-WP standard models for interior doors.)


  • Series Name: Trilogy
  • Lock Platform: Cylindrical Lock
  • Reader Technology: Keypad Only
  • Keypad Type: Electronic
  • # Users: 100
  • Cylinder Type: Conventional Cylinder
  • Door Thickness: 1-5/8" to 1-7/8"
  • Latch Backset Dimension: 2-3/4"
  • Strike Type: T-Standard and ASA
  • Power: Battery Pack
  • Programmer: Optional
  • Software: Optional
  • Product Type: Cylindrical Locks with Keypad Trim

Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.

Door Thickness:
1-5/8" to 1-7/8." Other thicknesses. Please consult Alarm Lock.

2-3/4" Standard. 2 3/8" backset also available.

All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.

Standard Key Override Cylinders:
Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.

Interchangeable Core Models:
Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.

UL Listed, fire rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.

1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs.

Latch Front:
1 1/8” x 2 1/4” wrought brass or stainless steel.


US3 polished brass, US26D satin chrome,  10B Duronodic.

5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor.

Door Prep:
Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes.

Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
