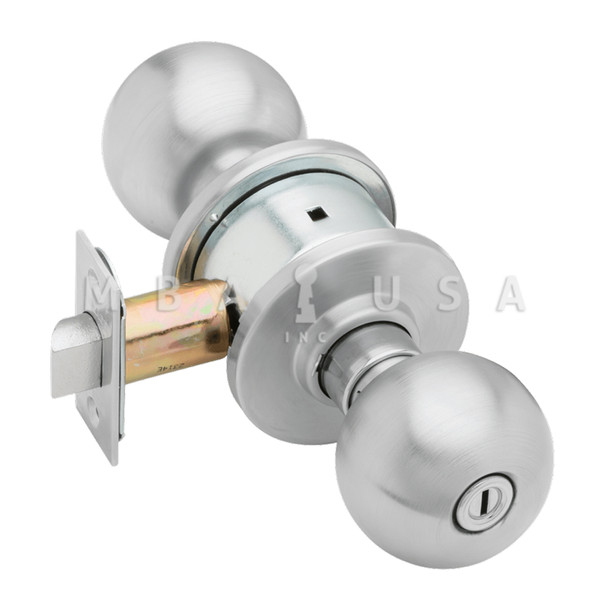

Schlage Grade 2 Privacy Cylindrical Lock, Orbit Knob, Non-Keyed, Satin Chrome, Non-Handed (A40S ORB 626)

Schlage Grade 2 Privacy Cylindrical Lock (A40S ORB 626)

• Orbit Knob
• Non-Keyed
• Satin Chrome Finish
• Non-handed

Technical Specs:

• Cylinder Type: Non-Keyed
• Handing: Non-Handed
• Bolt Projection: 1/2"
• Bore Hole Diameter: 2-1/8"
• Function Family: Privacy
• ANSI Function: F76 - Privacy
• Std. Latch Type: Springlatch
• Latch Bore Diameter: 7/8"
• Std. Latch Backset Dim: 2-3/8"
• Std. Strike Height: 2-3/4"
• Std. Strike Width: 1-1/8"
• Lever/Knob Design Family: Ball Knob
• Dust Box: Plastic
• Rose/Escutcheon Dimensions: 2-9/16"
• Door Thickness: 1-3/8" to 1-7/8"
• Function: 40-Bed Bathroom Privacy Lock
• Rose/Escutcheon Design: 2-9/16" Rose Diameter
• Lock Face Size: 2-1/4" x 1"
• Std. Strike Type: T-Strike
• Screws: Wood/Metal Screws
• Lever/Knob Design: ORB - Orbit Knob
• Std. Strike Number: 10-001
• Std. Latch Number: 11-068

Technical Specs:

• Schlage A Series Knob Locks Cut Sheet
