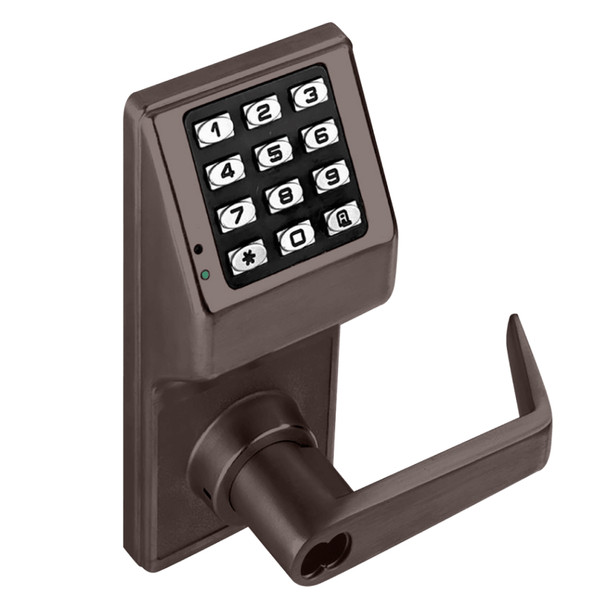

Alarm Lock Grade 1 Pushbutton Cylindrical Lock, Medeco LFIC Prep, Less Core (DL2700IC-M US10B)

Alarm Lock Grade 1 Pushbutton Cylindrical Lock, Medeco LFIC Prep, Less Core (DL2700IC-M US10B)

• Grade 1 Pushbutton Cylindrical Lock
• 100 Users
• Straight Lever
• Medeco LFIC Prep
• Less Core
• Oil Rubbed Bronze Finish (613/US10B)

Technical Specs:

• Series Name: Trilogy
• Lock Platform: Cylindrical Lock with Keypad Trim
• Reader Technology: Keypad Only
• Keypad Type: Electronic
• # Users: 100
• Cylinder Type: Medeco LFIC Less Core
• Door Thickness: 1-5/8" to 1-7/8"
• Latch Backset Dimension: 2-3/4"
• Strike Type: T-Standard and ASA
• Power: Battery Pack
• Programmer: Optional
• Software: Optional
• Product Type: Cylindrical Locks with Trim

Trilogy® T2 standalone digital cylindrical keyless door lock.
Alarm Lock's most popular keypad door lock – now with more codes & power. More codes with up to 100 3 to 5 digit codes, 1 master, 10 managers, 90 basic users, and 3 one-time service codes. 5AA battery operated; 175,000 cycles, typ. For outdoors, specify WP Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C).

• More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes
• 5AA battery operated; 5 years battery life or 200,000 cycles, typ.
• For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)

Applications:

• DL-WINDOWS v3.5 Upgrade Information
• Trilogy Networx Locks DL-Windows Quick Start
• USB Serial COM Port Reassignment Guide for Windows 98

Brochures:

• Alarm Lock Trilogy Brochure (ALA494)
• Health Care Brochure (ALA488)
• School Brochure (ALA491).
• Schools and Hospital Profit Center flier
• Schools and Hospital Profit Center flier (version 2)
• Alarm Lock Product Catalog

Cheat Sheet:

• T2 DL2700 (Original Version) Keypad Programming Cheat Sheet

EC Listings:

• EC Declaration of Conformity for the DL2700 Series Cylindrical Lock

How-To:

• Lever Spring (HW1220) Replacement Kit

Miscellaneous:

• DL-Windows 3.5 (or Higher) Expanded Features
• DL-Windows 4.1 Upgrade Notice
• DL-Windows Timezone Scheduling Scenario Examples (v4.1x)
• DL-Windows V5.0.0 Initial Release (Changes and New Features)
• DL2700 Parts List With Exploded View
• DL2700WP Parts List With Exploded View
• DL2750WP Parts List With Exploded View

Programming Manuals:

• DL-Windows for Trilogy Networx V4 User's Guide
• DL2700LD Programming Instructions

Quick Start Guides:

• DL-Windows V3.6.X Quick Start Guide
• DL-Windows V4.1x Quick Start Guide

Spec Sheets:

• DL2700 Spec Sheet
• DL2700LD Spec Sheet

Tech Tips:

• DL-Windows Event Log Viewer: "Still Locked _ No Override" Event (Tech Tip)
• DL-Windows Holiday Planning Worksheet
• DL-Windows Security Password Recommendation

User Guides:

• DL-Windows for Trilogy Networx V5 User's Guide
• DL-Windows User Manual
• DL-Windows V4.0.1 User Guide
• DL-Windows V5 User Guide
