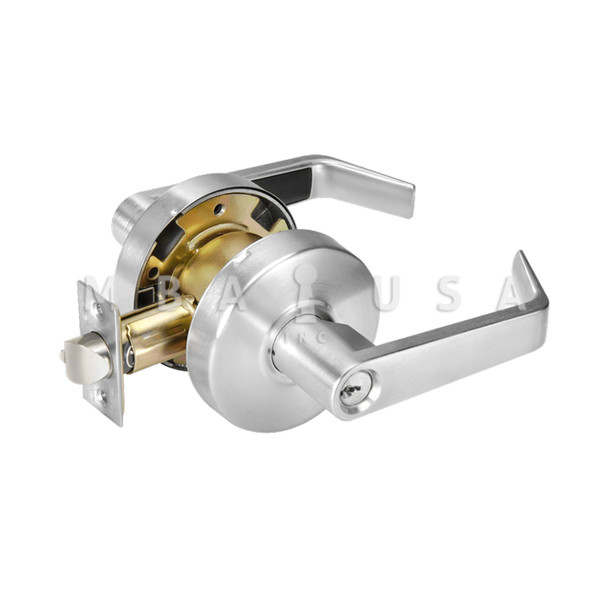

ACCENTRA Grade 2 Entry Cylindrical Lock, Augusta Lever, Conventional Cylinder, Satin Chrome, Non-Handed (AU4607LN 626)

ACCENTRA Grade 2 Entry Cylindrical Lock (AU4607LN 626)

• Augusta Lever
• Conventional Cylinder
• Satin Chrome Finish
• Non-handed

Technical Specs:

• Handing: Non-handed
• Bolt Projection: 1/2"
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Cylinder Type: Conventional Cylinder
• Pins: 6
• # of Keys: 2
• Key(s): Cut
• Std. Latch Type: Deadlatch
• Screws: Wood/Machine Screws
• Lever/Knob Design Family: Straight Return Lever
• Std. Latch Backset Dim: 2-3/4"
• Bore Hole Diameter: 2-1/8"
• ANSI Function: F109 - Entry/Office
• Lock Face Size: 2-1/4" x 1-1/8"
• Std. Strike Type: ANSI Strike
• Rose/Escutcheon Design: 3-3/8" Rose Diameter
• Rose/Escutcheon Dimensions: 3-3/8"
• Latch Bore Diameter: 7/8"
• Door Thickness: 1-3/8" to 1-3/4"
• Function Family: Entrance/Office
• Std. Strike Number: 497
• Lever/Knob Design: AU - Augusta Lever
• Function: 07-Entry
• Std. Latch Number: MCD234
