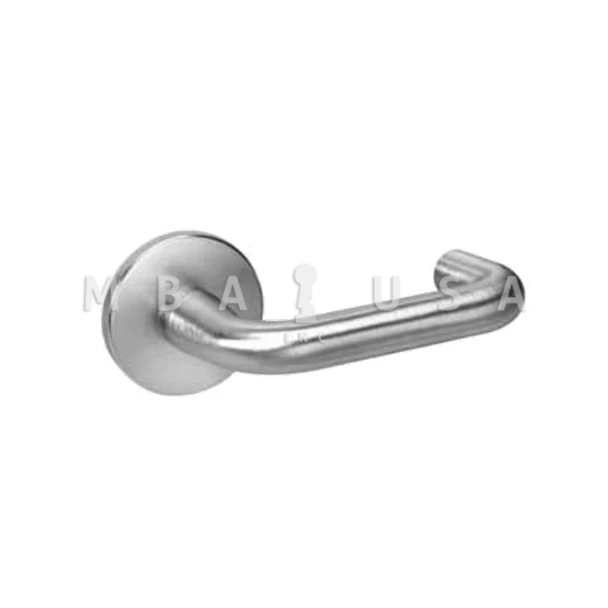

ACCENTRA Grade 1 Passage or Closet Mortise Lock, Carmel Lever, CO Rose, Satin Chromium Plated (CRR8801FL 626)

ACCENTRA Grade 1 Passage or Closet Mortise Lock (CRR8801FL 626)

• Carmel Lever
• CO Rose
• Satin Chromium Plated Finish

Technical Specs:

• Door Thickness: 1-3/4"
• Std. Strike Type: ASA
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Std. Latch Backset Dim: 2-3/4"
• Lock Face Size: 8" x 1-1/4"
• Bolt Projection: 3/4"
• ANSI Function: F01 - Passage
• Function: 01-Passage/Closet Latch
• Std. Strike Number: 2815
• Lever/Knob Design: CR - Carmel Lever
• Rose/Escutcheon Design: CO Rose
