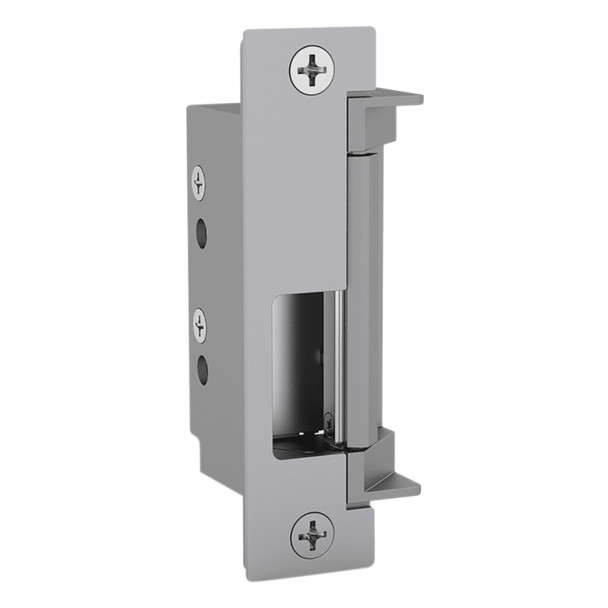

HES Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC (4500C-630)

HES 4500C Series Electric Strike (4500C-630)

• Grade 1 Electric Strike
• Fail Safe/Fail Secure
• 12/24 VDC
• Low Profile
• Fire Rated
• Satin Stainless Steel (630/US32D)

Technical Specs:

• Function: Fail Safe/Fail Secure
• Operating Voltage: 12/24 VDC
• Amp Draw: .24 @ 12V .12 @ 24V
• Keeper Size: 3/4"
• Configuration: Universal
• For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
• Faceplate Size: 4-7/8" x 1-1/4"
• Fire Rated: Yes
• Holding Force: 3000 lbs.
• Frame Application: Metal or Wood
• Product Type: Electric Strikes

The low profile, heavy duty, fire-rated solution.
The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.

Standard Features:

• Stainless steel construction
• Tamper-resistant
• Static strength: 1,500 lbs
• Dynamic strength: 100 ft-lbs
• Endurance: 1 million cycles
• Field selectable fail secure/fail safe
• Two faceplates provided to accommodate a variety of locksets
• Non-handed
• Internally mounted solenoid
• Accommodates up to a 3/4" latchbolt
• Strike body depth: 1-3/8"
• Plug-in connector
• Trim enhancer
• Full keeper shims for horizontal adjustment
