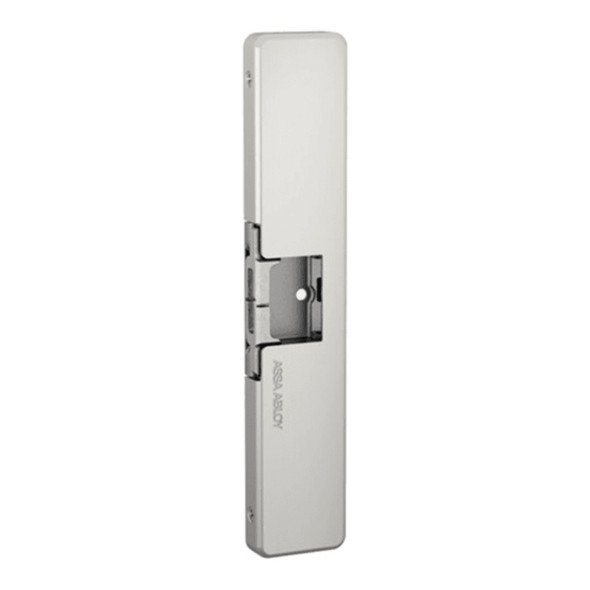

HES 9500 Series Electric Strike (9500-630)

HES 9500 Series Electric Strike (9500-630)

• Fail Safe/Fail Secure
• Complete 12/24VDC Electric Strike
• Surface Mounted
• 3/4" Thickness
• Fire Rated
• Satin Stainless Steel (630/US32D)

Technical Specs:

• Function: Fail Safe/Fail Secure
• Operating Voltage: 12/24 VDC
• Amp Draw: .45 @ 12V .25 @ 24V
• Keeper Size: PK Keeper
• Configuration: Centered
• For Use With: Rim Exit Devices
• Faceplate Size: 9" x 1-3/4"
• Fire Rated: Yes
• Holding Force: 1500 lbs.
• Frame Application: Metal or Wood
• Product Type: Electric Strikes

The 9500 Series is fire rated for 3 hours and designed to accommodate rim exit devices with a 3/4" Pullman latch.
All components of the 9500 Series are completely encased within its 3/4" thick stainless steel housing, so not cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install.

• UL 10C fire-rated, 3 hour (fail secure)
• CAN4-S104 (ULC-S104) fire door conformant
• WHI fire door listed
• UL 1034 burglary-resistant listed and suitable for outdoor use
• UL 294 (6th Edition) Listed
• ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)
• NFPA-252 fire door conformant
• ASTM-E152 fire door conformant
• California Fire Marshall listed
• NFPA 80-07 compliant
• RoHS compliant
• Patent #6,390,520
• Patent pending
