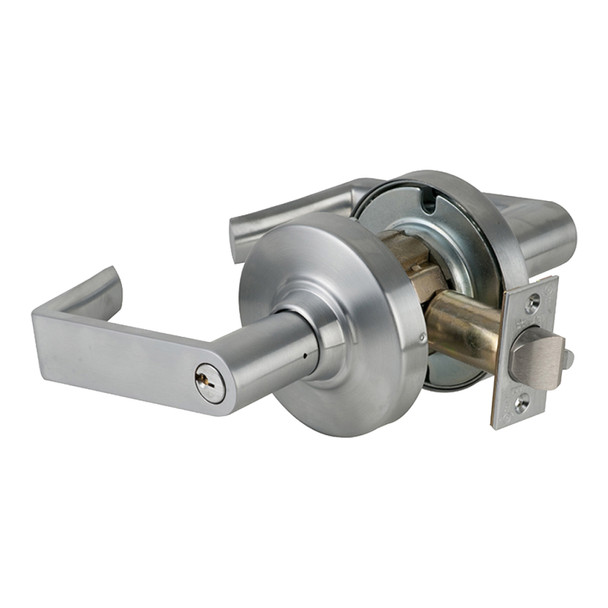

ACSI Grade 1 Electric Cylindrical Lock, Storeroom, Fail Secure (ACND80PDEU RHO 626 24V)

ACSI Grade 1 Electric Cylindrical Lock, Storeroom, Fail Secure (ACND80PDEU RHO 626 24V)

• Grade 1 Electric Cylindrical Lock
• Storeroom Electrical Fail Secure Function
• 24VAC/DC
• 2-3/4" Backset
• Rhodes Lever
• 3-7/16" Diameter Rose
• C Keyway Key in Lever Cylinder
• Satin Chrome Finish
• Non-Handed

Technical Specs:

• Function: Fail Secure
• Lever Design: Rhodes
• Rose/Escutcheon: 3-7/16" Diameter
• Cylinder Type: Conventional
• Num Pins: 6
• Keyway: C
• Keying: Keyed Different
• Keys Included: 2
• Door Thickness: 1-3/4" to 2"
• Latch Number; 13-047
• Latch Type: Guarded
• Latch Backset: 2-3/4"
• Lock Face Size: 2-1/4" x 1-1/8"
• Bolt Projection: 1/2"
• Strike Number: 10-025
• Strike Type: ASA
• Strike Dimensions: 4-7/8" (h) x 1-1/4" (w)
• Power: Hard Wired
• Operating Voltag: 24VAC/DC
• Amp Draw: 0.15

ACSI supplies high quality UL Listed modifications to a wide range of manufacturer’s locksets. You supply the lock and ACSI supplies high quality UL Listed modifications to a wide range of manufacturers' locksets.

• UL Listed
• Fail Safe (Power Lock) - Outside trim is locked when power is applied and unlocked when power is removed (storeroom function when energized). Lockset will unlock in event of power failure (passage function).
• Fail Secure (Power Unlock) - Outside trim is unlocked when power is applied and locked when
• Power is removed. Lockset will lock in event of power failure.
• Continuous duty solenoids
• 24VDC, 24VAC, 12VDC, 12VAC, or pneumatic operation
• When key cylinders are provided in the locks, the latchbolt may be momentarily retracted with key even though electrically locked. NOTE: Locks that are electrically unlocked may not be locked via the key cylinder.
• Security Monitoring available
• Authorized Egress (Request to Exit) available
• Interface with Life-Safety Systems

Resources:

• Schlage ND Series Cylindrical AE (Authorized Egress) Installation Instructions
