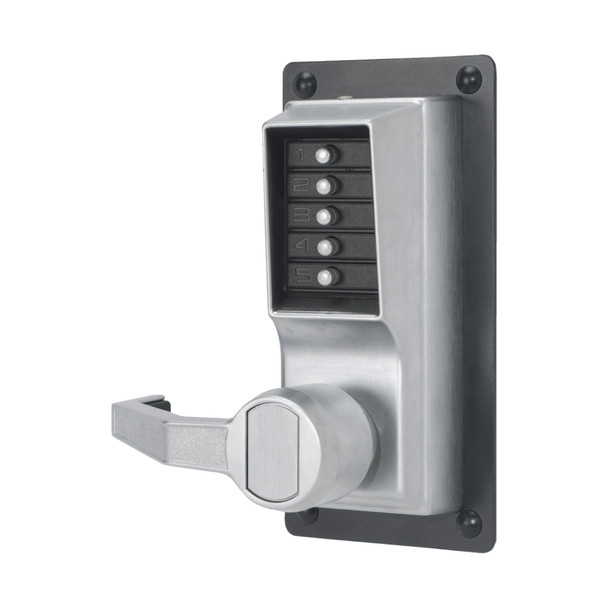

Simplex LP1000 Series Exit Trim Lever Lock, Combination Only, Left Hand Reverse (LLP1010-26D-41)

Simplex LP1000 Series Exit Trim Lever Lock (LLP1010-26D-41)

• Exit Trim Lever Lock
• Combination Only
• Left Hand Reverse
• Satin Chrome (626/US26D)

Technical Specs:

• Lock Platform: Exit Device Trim, Rim with Keypad

Simplex LP1000 Series eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

• Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Exit Device Strike: Supplied with Exit Device
• Tailpiece:
• 2¾" (70 mm) tailpiece for Exit Device operation from outside
• Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
• Minimum Stile Recommended: 5" (127 mm)
• Weight: 8 lbs. (3.6 kg)
• Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
• Door Preparation: Recessed through bolts may be required for Exit Device preparation
• Door Thickness:
• 1⅜" (35 mm) to 2¼" (57 mm)
• Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
• Durability: Weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
