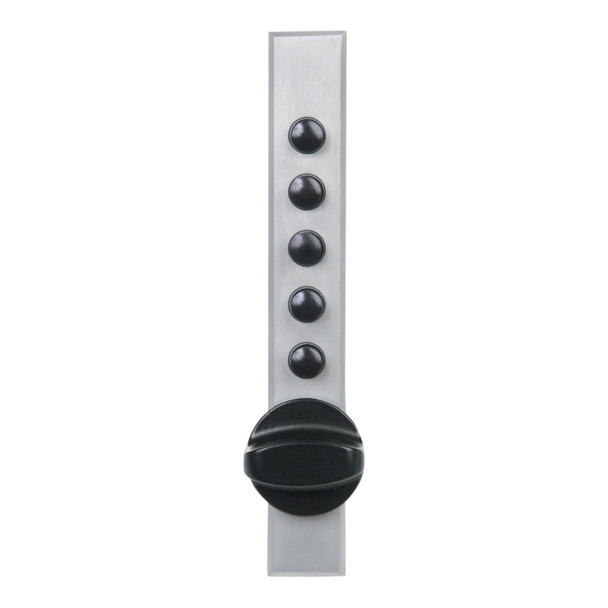

Simplex 9600 Cabinet Lock, Wood Application, Cross Throw, Clutch Ball Bearing Knob, No Trim Plate, Spring Latch (9621C11-26D-41)

Simplex 9600 Series Cabinet Lock (9621C11-26D-41)

• Cabinet Lock
• Wood Application
• Cross Throw
• Clutch Ball Bearing Knob
• Without Trim Plate
• Spring Latch
• Satin Chrome

The 9600 Series is specifically designed for cabinet doors, desk drawers, and similar applications.

• Construction: All metal cast face plate; force-resistant, protected exterior knob
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Non-handed
• Bolt:
• End-throw/cross-throw deadbolt (must be manually relocked)
• End-throw/cross-throw spring latch (with automatic relock)
• Door Thickness:
• Wood doors: ⅝" (16 mm) to ⅞" (22 mm)
• Sheet metal applications: 14 to 20 gauge 1⁄3", 1⁄16", 1⁄4"
• Installation:
• Horizontal or vertical.
• Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications).
• Punched slot or series of 7⁄16" (11 mm) drilled holes (for metal applications).
• Warranty: 1-year warranty

Resources:

• Simplex 9600 Options & Part Numbers
