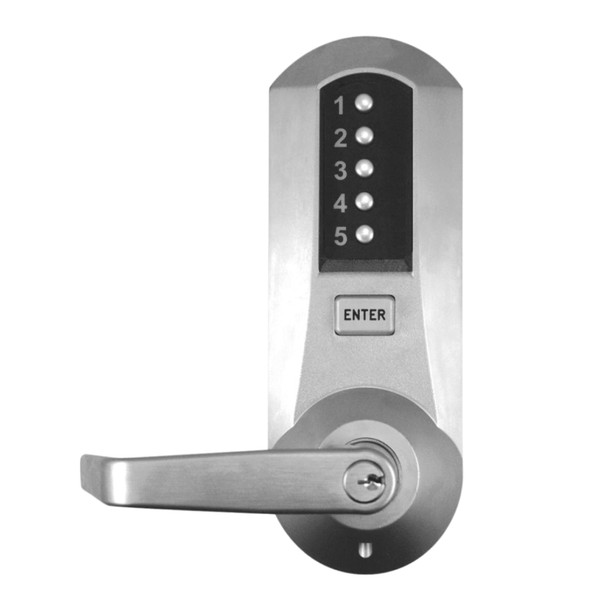

Simplex 5000 Series Cylindrical Combination Lever Lock, Passage, Interior Combination Change, DOD, KIL, Schlage C Keyway (5051XSWL-26D-41)

Simplex 5000 Series Cylindrical Combination Lever Lock (5051XSWL-26D-41)

• Cylindrical Combination Lever Lock
• Passage, Interior Combination Change
• DOD
• 2-3/4" Backset
• 1/2" Throw Latch
• KIL
• Schlage C Keyway
• Satin Chrome (626/US26D)

Technical Specs:

• Lock Platform: Cylindrical Lock
• Cylinder Type: Conventional Cylinder
• Pins: 6
• Keyway: C

The Simplex 5000 Series provides exterior access by combination, while allowing free egress.

• Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing the lock from the door
• Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
• Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable core
• Accessibility Standard: Americans with Disabilities Act (ADA)

Resources:

• Simplex Product Catalog
• Kaba Simplex Mechanical Pushbutton Lock - 5000 Series Exit Installation Instructions
• Kaba Simplex Mechanical Pushbutton Lock - 5000 Series Installation Instructions
• CSI Specifications for Simplex 5000 Series Mechanical Pushbutton Locks
• Technical Specifications for Simplex 5000 Series Mechanical Pushbutton Locks
