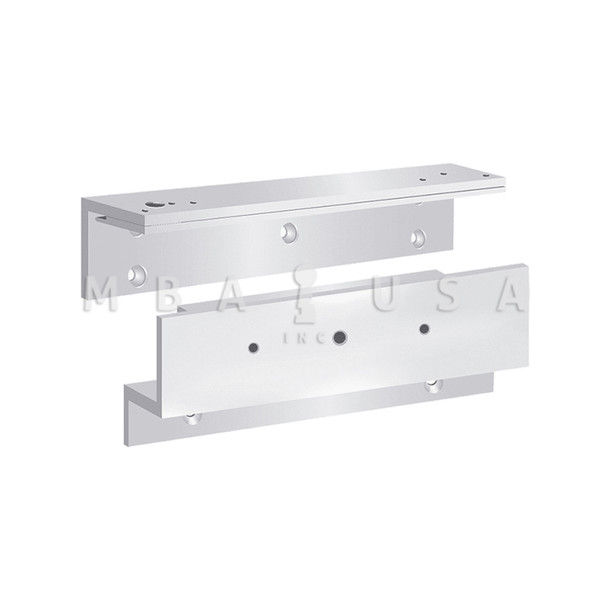

SDC Top Jamb Kit for EMLocks, Single for 350V Narrow Line EMLock, Satin Aluminum Clear Anodized (TJ350)

SDC Top Jamb Kit for EMLocks, Single for 350V Narrow Line EMLock, Satin Aluminum Clear Anodized (TJ350)

Specialized top jamb mounting kit designed specifically for the 350V Narrow Line EMLock series. This kit is essential for "pull-side" installations on inswinging doors, allowing the narrow-profile 1200 lbs lock to be mounted to the frame head while the armature plate is securely attached to the door using a Z-bracket configuration.

• Narrow Line Specialty: Custom-sized to fit the SDC 350V (Single) Narrow Line EMLock, maintaining the low-profile architectural aesthetic of the lock.
• Inswing Door Solution: Specifically for doors that swing inward, providing the necessary offset for the magnet and armature to meet properly.
• High Strength: Supports the full 1200 lbs (545 kg) holding force of the 350V series without flexing or slipping.
• Aesthetic Matching: Finished in 628 Satin Aluminum (Clear Anodized) to seamlessly match the lock housing and standard aluminum door frames.
• Field Adjustable: The bracket design allows for minor adjustments during installation to ensure the armature plate is perfectly centered on the magnet face.
