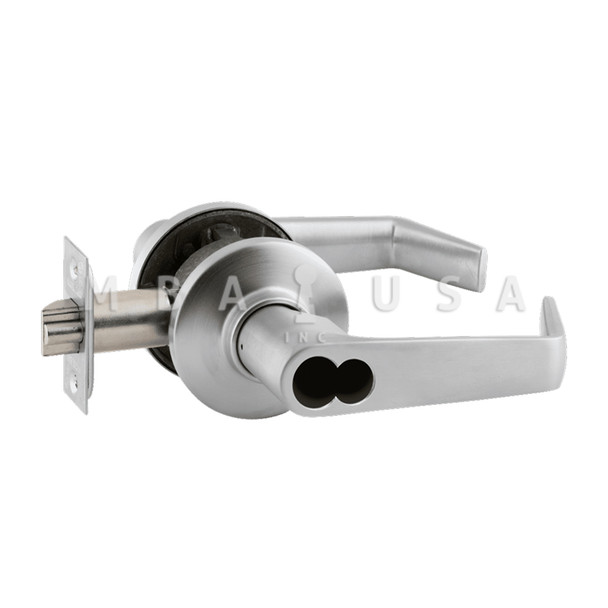

Schlage Grade 2 Tubular Lock, Storeroom Function, Schlage FSIC Less Core, Saturn Lever, Satin Chrome, Non-Handed (S80JD SAT 626)

Schlage Grade 2 Tubular Lock (S80JD SAT 626)

• Storeroom Function
• Schlage FSIC Less Core
• Saturn Lever
• Satin Chrome Finish
• Non-Handed

Technical Specs:

• Handing: Non-handed
• Bolt Projection: 1/2"
• Screws: Combination
• Lever/Knob Design Family: Straight Return Lever
• Bore Hole Diameter: 2-1/8"
• Cylinder Type: Schlage FSIC Less Core
• Function Family: Storeroom
• ANSI Function: F86 – Storeroom
• Latch Bore Diameter: 7/8"
• Standard Strike Height: 2-3/4"
• Standard Strike Width: 1-1/8"
• Door Thickness: 1-3/8" to 2"
• Dust Box: Plastic
• Rose/Escutcheon Dimensions: 2-9/16"
• Lever/Knob Design: SAT – Saturn Lever
• Lock Face Size: 2-1/4" x 1"
• Standard Strike Type: T-Strike
• Rose/Escutcheon Design: 2-1/2" Rose Diameter
• Standard Latch Backset Dimension: 2-3/8" – 2-3/4"
• Standard Strike Number: 10-001
• Standard Latch Number: 16-203
• Standard Latch Type: Square Corner Deadlatch
• Function: 80 – Storeroom

Resources:

• Schlage S Series Tubular Lever Locks Cut Sheet
