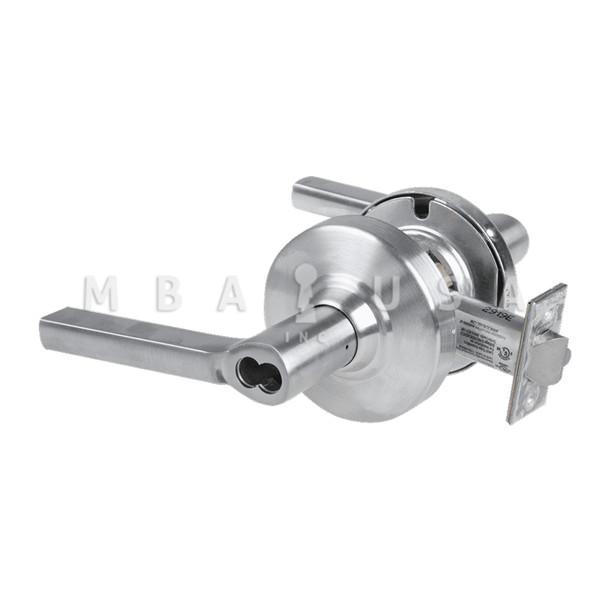

Schlage Grade 2 Storeroom Cylindrical Lock w/ Field Selectable Vandlgard, Latitude Lever, SFIC Less Core, Satin Chrome, Non-Handed (ALX80B LAT 626)

Schlage Grade 2 Storeroom Cylindrical Lock with Field Selectable Vandlgard (ALX80B LAT 626)

• Latitude Lever
• SFIC Less Core
• Satin Chrome Finish
• Non-handed

Technical Specs:

• Handing: Non-handed
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Screws: Combination
• Cylinder Type: SFIC Prep Less Core
• Std. Latch Type: Deadlatch
• Std. Latch Backset Dim: 2-3/4"
• Lever/Knob Design Family: Straight Lever
• Function Family: Storeroom
• ANSI Function: F86 - Storeroom
• Lock Face Size: 2-1/4" x 1-1/8"
• Bolt Projection: 1/2 In.
• Door Thickness: 1-3/8" - 1-3/4"
• Std. Strike Type: ANSI Strike
• Pins: 6 to 7
• Lever/Knob Design: LAT - Latitude Lever
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Bore Hole Diameter: 2-1/8 In.
• Function: 80-Storeroom Lock
• Std. Latch Number: 47267042
• Std. Strike Number: 47267101
• Rose/Escutcheon Dimensions: Rhodes
• Latch Bore Diameter: 7/8 In.

Resources:

• Schlage ALX Series Cylindrical Locks Cut Sheet
