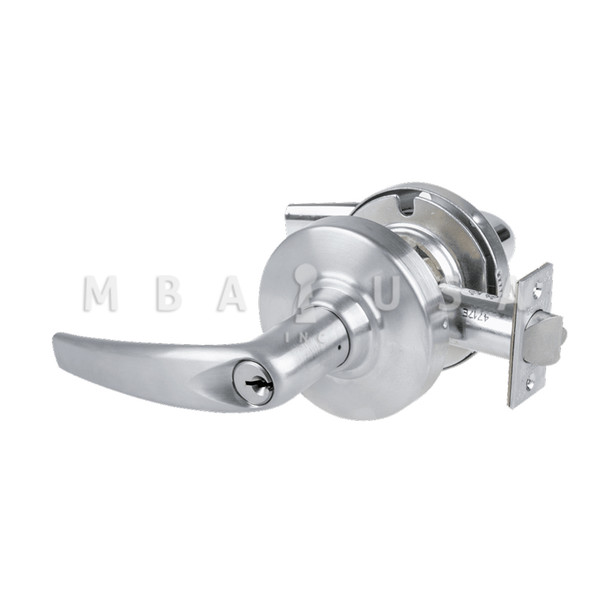

Schlage Grade 2 Storeroom Cylindrical Lock w/ Field Selectable Vandlgard, Athens Lever, Conventional Cylinder, Satin Chrome, Non-Handed (ALX80P ATH 626)

Schlage Grade 2 Storeroom Cylindrical Lock with Field Selectable Vandlgard (ALX80P ATH 626)

• Athens Lever
• Conventional Cylinder
• Satin Chrome Finish
• Non-Handed

Technical Specs:

• Handing: Non-handed
• Bolt Projection: 1/2"
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Screws: Combination
• Cylinder Type: Conventional Cylinder
• Pins: 6
• Number of Keys: 2
• Key(s): Cut
• Lever/Knob Design: ATH - Athens Lever
• Std. Latch Type: Deadlatch
• Std. Latch Backset Dim: 2-3/4"
• Bore Hole Diameter: 2-1/8"
• Function Family: Storeroom
• ANSI Function: F86 - Storeroom
• Lock Face Size: 2-1/4" x 1-1/8"
• Door Thickness: 1-3/8" - 1-3/4"
• Std. Strike Type: ANSI Strike
• Lever/Knob Design Family: Curved Lever
• Latch Bore Diameter: 7/8"
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Function: 80-Storeroom Lock
• Std. Latch Number: 47267042
• Std. Strike Number: 47267101
• Rose/Escutcheon Dimensions: Rhodes

Resources:

• Schlage ALX Series Cylindrical Locks Cut Sheet
