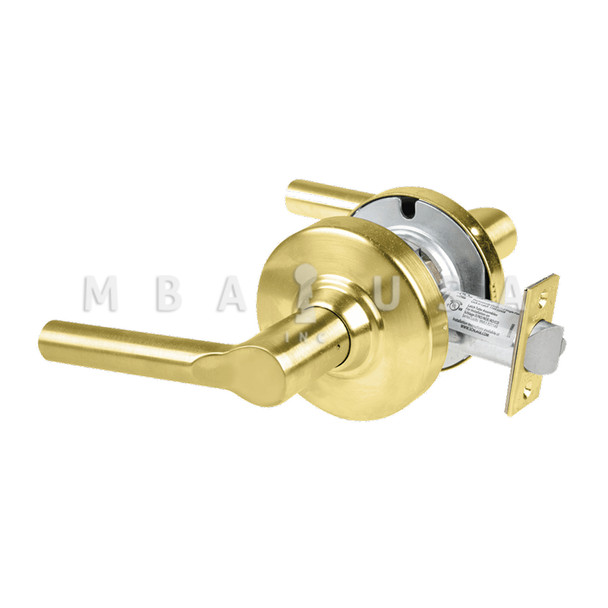

Schlage Grade 2 Passage Cylindrical Lock w/ Field Selectable Vandlgard, Broadway Lever, Non-Keyed, Satin Brass, Non-Handed (ALX10 BRW 606)

Schlage Grade 2 Passage Cylindrical Lock with Field Selectable Vandlgard (ALX10 BRW 606)

• Broadway Lever
• Non-Keyed
• Satin Brass Finish
• Non-handed

Technical Specs:

• Cylinder Type: Non-Keyed
• Handing: Non-handed
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Screws: Combination
• Std. Latch Backset Dim: 2-3/4"
• Lever/Knob Design Family: Straight Lever
• Lock Face Size: 2-1/4" x 1-1/8"
• Bolt Projection: 1/2 In.
• Door Thickness: 1-3/8" - 1-3/4"
• Std. Strike Type: ANSI Strike
• Function Family: Passage
• ANSI Function: F75 - Passage
• Std. Latch Type: Springlatch
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Bore Hole Diameter: 2-1/8 In.
• Function: 10-Passage Latch
• Lever/Knob Design: BRW - Broadway Lever
• Std. Strike Number: 47267101
• Std. Latch Number: 47267038
• Rose/Escutcheon Dimensions: Rhodes
• Latch Bore Diameter: 7/8 In.

Resources:

• Schlage ALX Series Cylindrical Locks Cut Sheet
