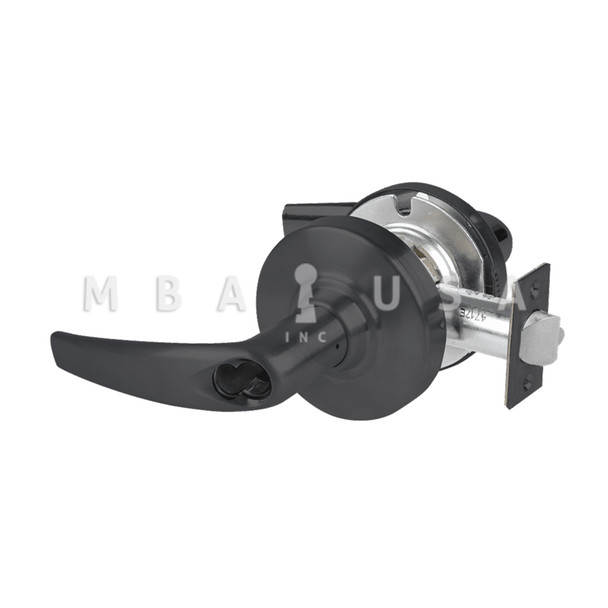

Schlage Grade 1 Storeroom Lock, Athens Lever, Schlage FSIC Prep Less Core, Matte Black, Non-Handed (ND80JD ATH 622)

Schlage Grade 1 Storeroom Lock (ND80JD ATH 622)

• Athens Lever
• Schlage FSIC Prep Less Core
• Matte Black Finish
• Non-Handed

Technical Specs:

• Handing: Non-handed
• Std. Strike Number: 10-025
• Pins: 6
• Lever/Knob Design: ATH - Athens Lever
• Std. Latch Type: Deadlatch
• Screws: Wood/Machine Screws
• Function Family: Storeroom
• ANSI Function: F86 - Storeroom
• Lock Face Size: 2-1/4" x 1-1/8"
• Bolt Projection: 1/2 In.
• Std. Strike Height: 4-7/8 In.
• Std. Strike Width: 1-1/4 In.
• Std. Strike Type: ANSI Strike
• Lever/Knob Design Family: Curved Lever
• Cylinder Type: Schlage FSIC Prep Less Core
• Std. Latch Backset Dim: 2-3/4 In.
• Std. Latch Number: 13-247
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Rose/Escutcheon Dimensions: 3-7/16"
• Door Thickness: 1-5/8 In. to 2-1/8 In.
• Latch Bore Diameter: 1 In.
• Bore Hole Diameter: 2-1/8 In.
• Function: 80-Storeroom Lock

Resources:

• Schalge ND Series Cylindrical Locks Cut Sheet
