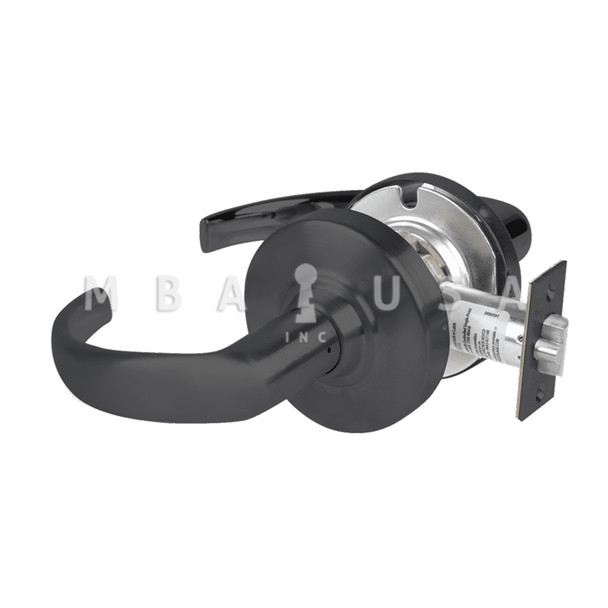

Schlage Grade 1 Passage Latch, Sparta Lever, Non-Keyed, Matte Black, Non-Handed (ND10S SPA 622)

Schlage Grade 1 Passage Latch (ND10S SPA 622)

• Sparta Lever
• Non-Keyed
• Matte Black Finish
• Non-Handed

Technical Specs:

• Cylinder Type: Non-Keyed
• Handing: Non-handed
• Std. Strike Number: 10-025
• Lever/Knob Design: SPA - Sparta Lever
• Screws: Wood/Machine Screws
• Lever/Knob Design Family: Curved Return Lever
• Lock Face Size: 2-1/4" x 1-1/8"
• Bolt Projection: 1/2 In.
• Std. Strike Height: 4-7/8 In.
• Std. Strike Width: 1-1/4 In.
• Std. Strike Type: ANSI Strike
• Function Family: Passage
• ANSI Function: F75 - Passage
• Std. Latch Type: Springlatch
• Std. Latch Backset Dim: 2-3/4 In.
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Rose/Escutcheon Dimensions: 3-7/16"
• Door Thickness: 1-5/8 In. to 2-1/8 In.
• Latch Bore Diameter: 1 In.
• Bore Hole Diameter: 2-1/8 In.
• Function: 10-Passage Latch
• Std. Latch Number: 13-248

Resources:

• Schalge ND Series Cylindrical Locks Cut Sheet
