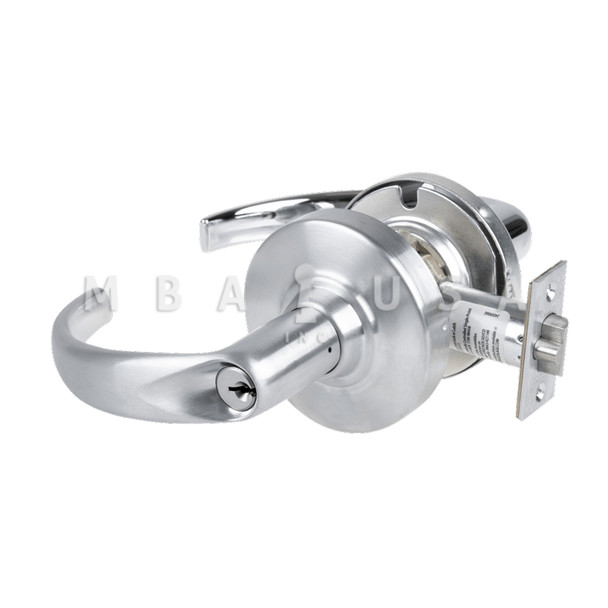

Schlage Grade 1 Institutional Lock, Sparta Lever, Standard Cylinder, Satin Chrome, Non-Handed (ND82PD SPA 626)

Schlage Grade 1 Institutional Lock (ND82PD SPA 626)

• Sparta Lever
• Standard Cylinder
• Satin Chrome Finish
• Non-Handed

Technical Specs:

• Function: 82 – Institution Lock
• Function Family: Institutional
• ANSI Function: F87 – Asylum
• Handing: Non-handed
• Lever/Knob Design: SPA – Sparta Lever
• Lever/Knob Design Family: Curved Return Lever
• Cylinder Type: Cylinder
• Pins: 6
• Keys: 2 (cut)
• Door Thickness: 1-5/8" to 2-1/8"
• Bolt Projection: 1/2"
• Std. Latch Type: Deadlatch
• Std. Latch Number: 13-247
• Std. Latch Backset: 2-3/4"
• Latch Bore Diameter: 1"
• Bore Hole Diameter: 2-1/8"
• Std. Strike Type: ANSI Strike
• Std. Strike Number: 10-025
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Lock Face Size: 2-1/4" x 1-1/8"
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Rose/Escutcheon Dimensions: 3-7/16"
• Screws: Wood/Machine Screws

Resources:

• Schalge ND Series Cylindrical Locks Cut Sheet
