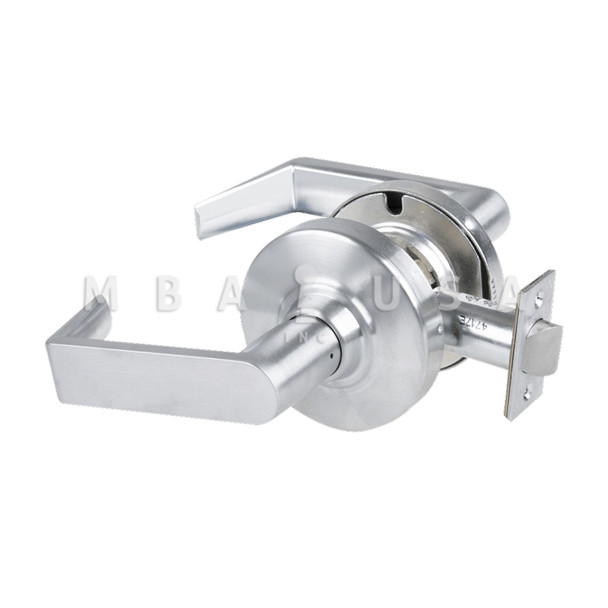

Schlage Grade 1 Exit Lock, Rhodes Lever, Non-Keyed, Satin Chrome, Non-Handed (ND12D RHO 626)

Schlage Grade 1 Exit Lock (ND12D RHO 626)

• Rhodes Lever
• Non-Keyed
• Satin Chrome Finish
• Non-Handed

Technical Specs:

• Cylinder Type: Non-Keyed
• Handing: Non-handed
• Bolt Projection: 1/2"
• Std. Strike Number: 10-025
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Lever/Knob Design: RHO - Rhodes Lever
• Std. Latch Type: Deadlatch
• Screws: Wood/Machine Screws
• Lever/Knob Design Family: Straight Return Lever
• Std. Latch Backset Dim: 2-3/4"
• Lock Face Size: 2-1/4" x 1-1/8"
• Std. Strike Type: ANSI Strike
• Function Family: Exit
• ANSI Function: F89 - Exit
• Std. Latch Number: 13-247
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Rose/Escutcheon Dimensions: 3-7/16"
• Latch Bore Diameter: 1 In.
• Bore Hole Diameter: 2-1/8 In.
• Door Thickness: 1-5/8" to 2-1/8"
• Function: 12-Exit Lock

Resources:

• Schalge ND Series Cylindrical Locks Cut Sheet
