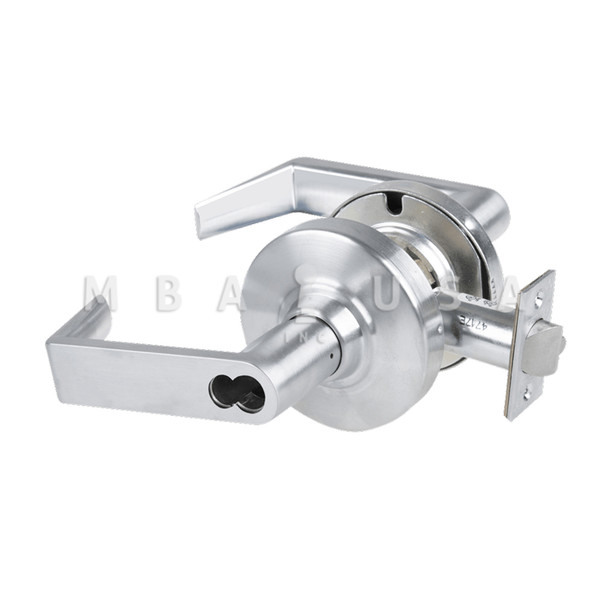

Schlage Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24 VDC, Fail Safe, 2-3/4" Backset, Rhodes Lever, SFIC Prep, Satin Chrome (ND80BDEL RHO 626)

Schlage Grade 1 Electrified Cylindrical Lock (ND80BDEL RHO 626)

• Storeroom Function
• 12-24 VDC
• Fail Safe
• 2-3/4" Backset
• Rhodes Lever
• SFIC Prep
• Satin Chrome Finish

Technical Specs:

• Operating Voltage: 12/24 VDC
• Power: Hard Wired
• AMP Draw: 0.23
• Function: 80EL-Fail Safe
• Cylinder Type: SFIC Prep Less Core
• Door Thickness: 1-3/4" to 2"
• Lever/Knob Design: RHO - Rhodes Lever
• Lever/Knob Design Family: Straight Return Lever
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Lock Face Size: 2-1/4" x 1-1/8"
• Std. Latch Type: Guarded Latch
• Std. Latch Number: 14-047
• Latch Backset Dim: 2-3/4"
• Std. Strike Number: 10-025
• Std. Strike Type: ASA
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Screws: Combination

Resources:

• Schalge ND Series Cylindrical Locks Cut Sheet
