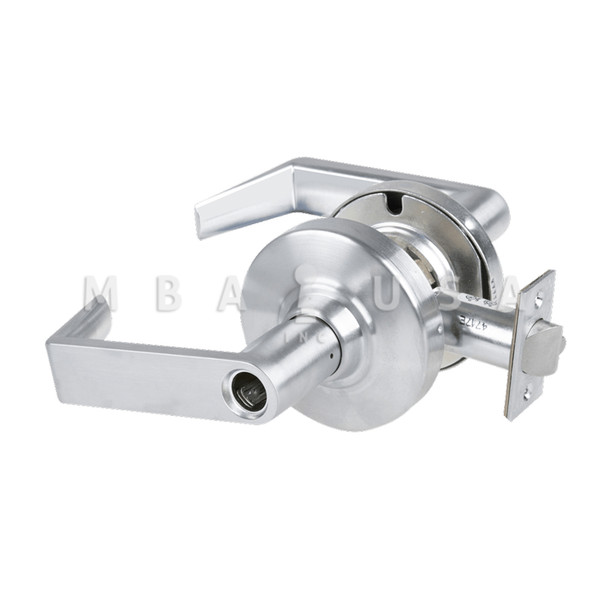

Schlage Grade 1 Classroom Lock, Rhodes Lever, Less Cylinder, Satin Chrome, Non-Handed (ND70LD RHO 626)

Schlage Grade 1 Classroom Lock (ND70LD RHO 626)

• Rhodes Lever
• Less Cylinder
• Satin Chrome Finish
• Non-Handed

Technical Specs:

• Handing: Non-handed
• Function: 70 – Classroom Lock
• Function Family: Classroom
• ANSI Function: F84 – Classroom
• Lever/Knob Design: RHO – Rhodes Lever
• Lever/Knob Design Family: Straight Return Lever
• Cylinder Type: Less Cylinder
• # Pins: 6
• Door Thickness: 1-5/8" to 2-1/8"
• Lock Face Size: 2-1/4" x 1-1/8"
• Bolt Projection: 1/2"
• Latch Bore Diameter: 1"
• Bore Hole Diameter: 2-1/8"
• Std. Latch Type: Deadlatch
• Std. Latch Number: 13-247
• Std. Latch Backset Dim: 2-3/4"
• Std. Strike Number: 10-025
• Std. Strike Type: ANSI Strike
• Std. Strike Height: 4-7/8"
• Std. Strike Width: 1-1/4"
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Rose/Escutcheon Dimensions: 3-7/16"
• Screws: Wood/Machine Screws

Resources:

• Schalge ND Series Cylindrical Locks Cut Sheet
