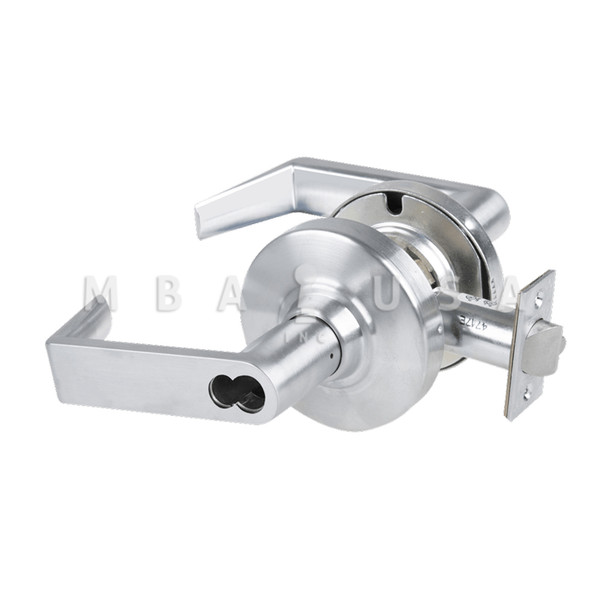

Schlage Grade 1 Classroom by Storeroom Lock, Rhodes Lever, Schlage FSIC Prep Less Core, Satin Chrome, Non-Handed (ND70x80JD RHO 626 XN12-006)

Schlage Grade 1 Classroom x Storeroom Lock (ND70X80JD RHO 626 XN12-006)

• Rhodes Lever
• Schlage FSIC Prep Less Core
• Satin Chrome Finish
• Non-Handed

Technical Specs:

• Handing: Non-handed
• Function: 70x80-Classroom x Storeroom Lock
• Function Family: Classroom
• Lever/Knob Design: RHO - Rhodes Lever
• Lever/Knob Design Family: Straight Return Lever
• Pins: 6
• Cylinder Type: Schlage FSIC Prep Less Core
• Door Thickness: 1-5/8 In. to 2-1/8 In.
• Lock Face Size: 2-1/4" x 1-1/8"
• Bolt Projection: 1/2 In.
• Latch Bore Diameter: 1 In.
• Bore Hole Diameter: 2-1/8 In.
• Std. Latch Type: Deadlatch
• Std. Latch Number: 13-247
• Std. Latch Backset Dim: 2-3/4 In.
• Std. Strike Number: 10-025
• Std. Strike Type: ANSI Strike
• Std. Strike Height: 4-7/8 In.
• Std. Strike Width: 1-1/4 In.
• Rose/Escutcheon Design: 3-7/16" Rose Diameter
• Rose/Escutcheon Dimensions: 3-7/16"
• Screws: Wood/Machine Screws

Resources:

• Schalge ND Series Cylindrical Locks Cut Sheet
