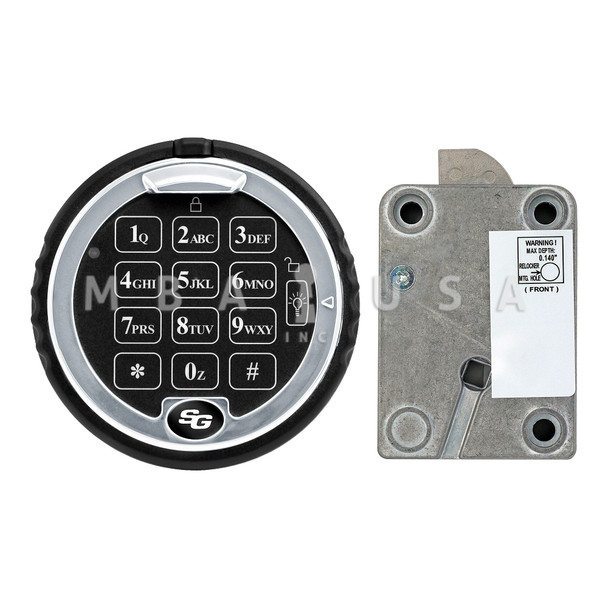

S&G Spartan Pivoltbolt (Swingbolt) Lock w/ Low-Profile Keypad, Rotating, Lighted (Chrome)

S&G Spartan Pivoltbolt (Swingbolt) Lock w/ Rotating, 1-Battery, Low-Profile Keypad (Chrome)

• Automatically re-locks to secure the safe whenever the container’s boltwork moves to the fully closed position
• Lock bolt retraction and extension is controlled by the movement of the safe’s boltwork
• Withstands 225 lbs. of bolt end pressure for a high level of security
• Stainless steel lock bolt

Low-Profile Keypad Features:

• The low-profile keypad is only 1” high (25.4mm) and smaller in diameter (3-¾” or 95.2mm) compared to other S&G keypads
• Rotating
• Lighted
• 1-Battery (9V, not included)
• The battery is kept in an easy-to-access battery compartment near the top of the keypad

Lock Operation:

• Motor-blocking bolt operation
• STAR - S&G programming
• BASIC - LaGard programming
• Penalty lockout after five failed attempts
• Tested up to 10,000 openings on one 9V  alkaline battery
• Low battery signal
• Bolt extension beeps/LED signals
• Beeper volume adjustment

Code Management:

• One master code, one user code
• Manager can add, delete, or enable/disable  user code
• Management Reset Code
• One million codes available
• Field programmable from keypad

Lock Installation:

• Standard S&G Magic Module footprint
• Universally handed: left hand, right hand, up, or down mounting

Certifications:

• UL-Listed Type 1
• EN 1300 Class B
• ECB-S R01 Lock Guide, Class B
• VdS Class 2
• A2P Class B/E
• SBSC
• RoHS2 Compliant

Warranty:

• Two-year limited warranty from date of shipment
