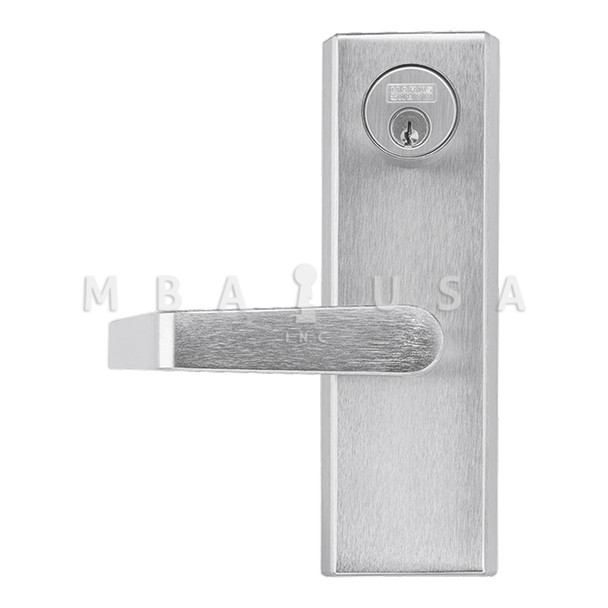

Marks USA M9900 Series Exit Trim, Grade 1, Entry Function, 1-1/4" Mortise Cylinder, Schlage SC1 Keyway, American Lever w/ Escutcheon (MESC600A/26D)

Marks USA M9900 Exit Bar Trim (MESC600A/26D)

• Grade 1 M9900 Exit Bar Trim
• Entry Function
• American Lever with Escutcheon
• 1-1/4" Mortise Cylinder
• Schlage SC1 Keyway
• Satin Chrome Finish (626/US26D)
• Field Reversible

Product Specs:

• Grade: Grade 1
• ANSI: A156.3
• BAA Qualified: Yes
• Burglar Rated: No
• Installation: Commercial
• Fire Rating: No
• ADA Compliance: Yes
• UL Listing: UL305
• Limited Warranty: Lifetime

Technical Specs:

• Handing: Field Reversible
• Trim Type: Lever
• Trim Design: Lever with Escutcheon
• Reversible: Yes
• Fire Rated: No
• Cylinder Type: 1-1/4" Mortise
• Door Material: Wood or Metal
• Door Thickness: 1-3/4"
• Minimum Stile Size: 3-1/2"
• Includes Cylinder(s): Yes
• Device Type: Trim
• Mechanical Function: Entrance

M9900 Series Exit Devices: Heavy-duty, easily installed exit devices where high quality panic hardware is needed.
These extremely durable, Grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted Panic Protector™ End Caps, prevent abuse.

• Ultra-Durable, heavy gauge extrusion
• Marks Lifetime Mechanical Warranty
• Steel flush mounted Panic Protector™ End Cap
• Easy Installation & Retrofits All Popular Preps
• ANSI 156.3 (2001), Grade 1

Resources:

• Marks M9900/M8800 Series Spec Sheet
• M9900/M9900F Template
• MESC600 Template
