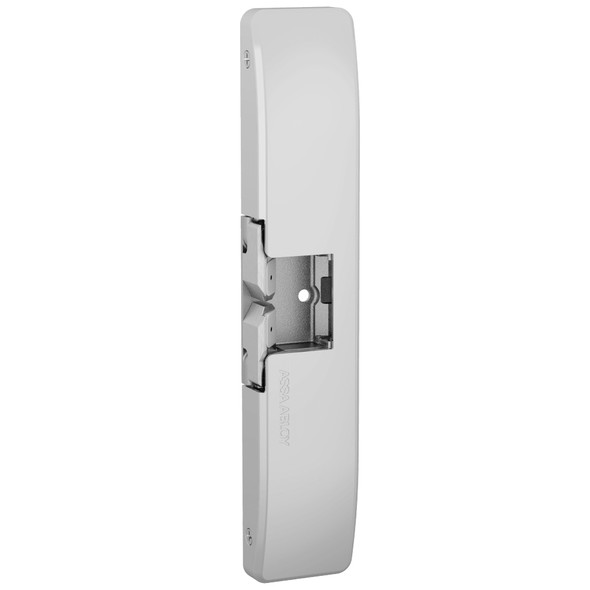

HES Grade 1 Electric Strike, Field Selectable, Safe/Secure (7501-630)

HES Grade 1 Electric Strike, Field Selectable, Safe/Secure (7501-630)

• Grade 1 Electric Strike
• Field Selectable (Safe/Secure)
• 4-7/8" x 1-1/4"
• 12/24 VDC
• Satin Stainless Steel (630/US32D)

Technical Specs:

• Function: Fail Safe/Fail Secure
• Operating Voltage: 12/24 VDC
• Amp Draw: .45 Amps @ 12VDC, .25 Amps @ 24VDC
• Keeper Size: 3/4"
• Configuration: Centered
• For Use With: Cylindrical Locks
• Faceplate Size: 4-7/8" x 1-1/4"
• Faceplate Shape: Flat Face, Square Corners
• Pre-Load: 15 lbs.
• Fire Rated: Yes
• Frame Application: Metal or Wood
• Product Type: Electric Strikes

The 7501 series is an ideal electric strike for fire-rated applications and has a heavy duty stainless steel construction.
The 7501 series provides strength and durability required to accommodate fire-rated latchbolts up to 3/4" throw.

• UL 10C, fire-rated, 3 hour (fail secure only)
• CAN4-S104 (ULC-S104) fire door conformant
• UL 1034, burglary-resistant listed
• ANSI/BHMA A156.31, Grade 1
• NFPA-252 fire door conformant
• ASTM-E152 fire door conformant
• MEA New York City accepted
• Patent #5,484,180
