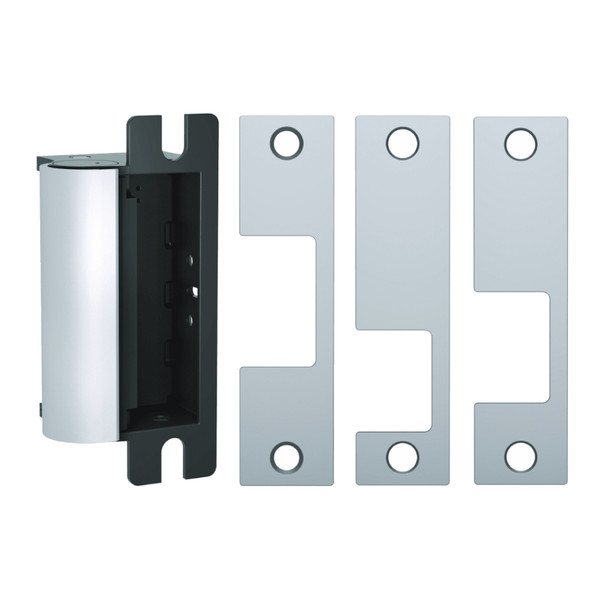

HES Fail Secure, Complete 12/24VDC Electric Strike, HM and AD Faceplates (1006CDB-630)

HES 1006 Series Electric Strike, Fail Secure (1006CDB-630)

• Fail Secure
• Complete 12/24VDC Electric Strike
• HM and AD Faceplates
• Satin Stainless Steel

Technical Specs:

• Function: Fail Secure
• Operating Voltage: 12/24 VDC
• Amp Draw: .45 @ 12V .25 @ 24V
• Keeper Size: 1"
• Configuration: Universal
• For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
• Fire Rated: Yes
• Holding Force: 3000 lbs.
• Frame Application: Metal or Wood
• Product Type: Electric Strikes

With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Frame Application:

• Metal
• Wood

Electrical:

• .45 Amps at 12VDC* continuous duty
• .25 Amps at 24VDC* continuous duty
• *Note: DC must be well filtered with ripple less than 1 volt RMS.

Standard Features:

• Stainless steel construction
• Tamper resistant
• Static strength 2,500 lbs. (fail secure)
• Dynamic strength 350 ft-lbs. (fail secure)
• Endurance 1,000,000 cycles
• Fail secure (standard)
• Dual voltage 12 or 24VDC continuous duty
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1" deadbolt
• Plug-in connector
• Full keeper shims for horizontal adjustment
• Trim enhancer
• Five year limited warranty
