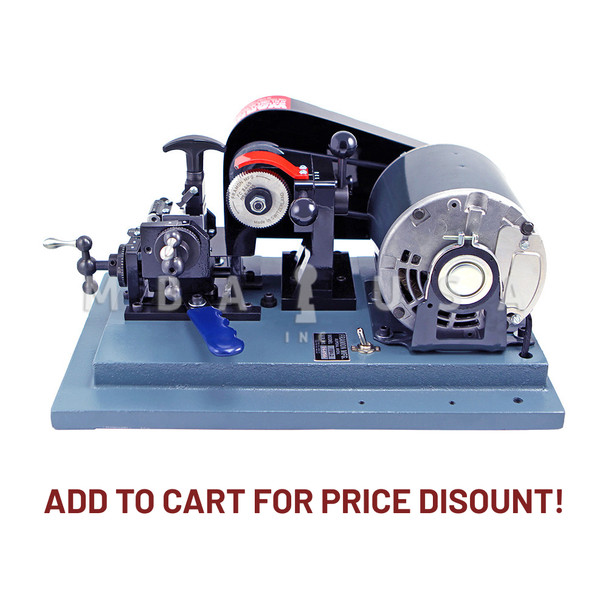

Framon #2 Code Machine for Detention Keys

The Renowned #2 Code Machine Modified For Detention Use.

The Framon #2J packs all of the features and benefits of the Framon #2, and adds everything you need to cut Folger Adam, Mogul, Southern Steel, and Adtec keys. A special vise is included with the machine to clamp the larger keys. An extension is added to the spacing crank to avoid interference with the head of these larger keys. When you choose the #2J, you enable yourself to originate almost any cylinder key in use today, including detention keys. Here’s just a few of the keys you’ll be able to cut with the #2J:

• Detention Keys: Adtec, Folger Adam, Mogul, Southern Steel
• Standard Cylinder: Arrow, Corbin, Kwikset, Lockwood, Russwin,Sargent, Schlage, Weiser, Weslock
• Domestic Automotive: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GMC, Jeep, Lincoln, Mercury, Oldsmobile, Plymouth, Pontiac
• Foreign Automotive: Alfa Romeo, Audi, BMW, Daihatsu, Eagle, Fiat, Geo, Honda, Hyundai, Isuzu, Mazda, Mitsubishi, Nissan, Peugeot, Porsche, Renault, Saab, Saturn, Subaru, Suzuki, Toyota, Volkswagen, Volvo, Yugo
• Motorcycle Keys: BMW, Harley-Davidson, Honda, Kawasaki, Suzuki, Triumph, Yamaha
• Padlock Keys: Abus, Almont, American, Ilco, Master, McKinney, Slaymaker, Squire, WB, Yale
• Letterbox Keys: Auth, Couch, Eagle, Florence, Keil, L & F, Lyon, National, Yale
• Safety Deposit Box Keys: Diebold, HHM, Ilco, LeFebure, Miles Osborn, Mosler, S & G, Security, Yale
• Interchangeable Core: Arrow, Best, Falcon, Corbin-Russwin, Sargent
• High Security Keys: Emhart, Medeco Commercial & Bi-Axial, Assa, Schlage Primus
• Tibbe 6 & 8 wafer keys can be cut with an optional vise fixture.

The Framon Depth & Space Manual is the core of the Framon #2J. The keys mentioned above are only a portion of those that you will have the capability to cut.

The manual contains:

• Over 900 cylinder key charts
• 18 letterbox charts
• 32 safety deposit box charts

Included with the Code Machine:

• Standard Cutter
• Depth & Space Manual
• Spacing Clip
• 1/8” Allen Wrench
• Jail Vise
• Large & Small Stops
• .103” Carbide Slotter
• Demonstration Video
• 6” Dial Caliper
• #1 Spacing Block
• #2 Spacing Block
• #3 Spacing Block
• #4 Spacing Block
• #5 Spacing Block
• Jail Spacing Block
• Brass Shim

In addition to cutting all of the detention keys, the #2J can still be used to cut almost any cylinder key you’ll come across. If detention key cutting is your line of work, the #2J is your machine! All of the extras included with the Framon #2J make it a great package. Here are a few of the features that make it a perfect code machine:

Accuracy:
All Framon key machines are hand assembled and hand fit. This ensures that before your machine reaches you, it has originated keys accurate to one-half thousandth of an inch (.0005″, about the thickness of a hair). This tolerance assures a perfect key every time!

Straight-In Feed:
The #2J utilizes a straight-in feed approach. The straight-in feed of the #2J provides a perpendicular cut at the root of the key. The flat of the cut will always be the same depth from the left side of the cut to the right. Machines that use a pivot approach can produce keys that turn one way but not the other. The drawing at the right shows the profile of a key cut by a machine that pivots. The different shear lines from the left to the right side of the key lead to the turning problem.

Rugged & Durable:
The #2J is made from heat treated aluminum and steel. The carriage moves forward on a pair of steel slides. Spacing and depth movements take place on pairs of steel pins and screws. There are no small gears to strip out and no plastic parts to wear out. We’ve heard plenty of stories from code machine owners who have dropped the machine off of their workbench and cut a key with no adjustments needed!

Cutting Keys By Measurement:
The #2J utilizes actual space & depth information to cut keys. Here’s how it’s done…..

Spacing:
To cut a key, you need two dimensions: starting cut (distance from the shoulder to the first cut) and spacing (distance between cuts thereafter), both found in the Depth & Space Manual. Shown at the right is the Schlage chart from our Depth & Space Manual. Schlage cylinder keys use .231″ starting cut and .156″ spacing. Starting cut is set by zeroing the machine and counting out to .231″. Once set, the the spacing block with .156″ is aligned. Cut to cut spacing is a simple matter of aligning two index marks.

Depth:
Depth settings are made in .001″ increments by means of a micrometer. Reading a micrometer is quite simple. The depth micrometer on the #2J is shown to the left. The micrometer depth reading is what gives the #2 its’ extreme accuracy. Once familiar with the machine, you’ll be code cutting keys in 30-45 seconds.
