E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Yale 7100, Corbin ED5200 Rim Devices, 6/7-Pin SFIC Prep, Less Core (E201YBLL-626-41)

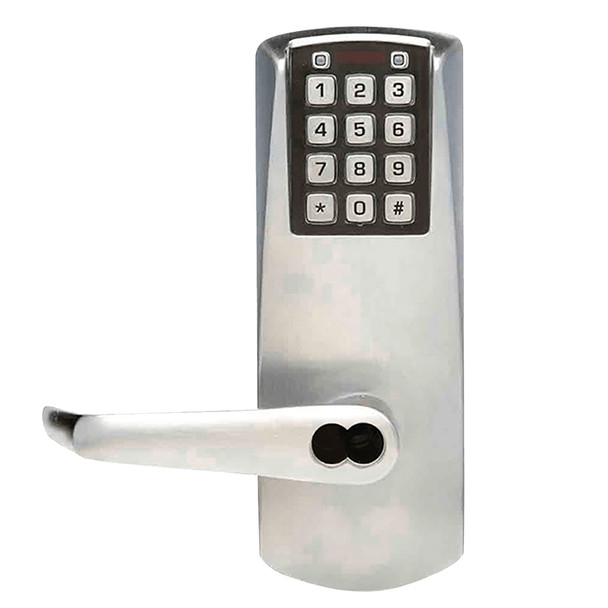

E-Plex 2000 Exit Trim (E201YBLL-626-41)

• E-Plex 2000 Exit Trim
• 100 Access Codes
• 1,000 Audit Events
• Yale 7100
• Corbin ED5200 Rim Devices
• 6/7-Pin SFIC Prep
• Less Core
• Satin Chrome

The E-Plex 2000 Series eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes.

• Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
• Backset:
• Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
• Mortise: 2¾" (70 mm) backset
• Exit Trim Model: Varies by Exit Device
• Latches:
• Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
• Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
• Minimum Stile Required: 5" (127 mm)
• Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
• Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included

Resources:

• Kaba E-Plex / PowerPlex Electronic Pushbutton Lock - 2000 Series Installation Instructions
• Kaba E-Plex / PowerPlex Electronic Pushbutton Lock - E2000/P2000/E5000 Series Lock Set Up Guide
• Lock Command Options with Descriptions - E-Plex/PowerPlex 2000 Series
• Kaba E-Plex / PowerPlex Electronic Pushbutton Lock - 2000 Series Operations Manual
• Technical specifications for E-Plex 2000 Electronic Pushbutton Locks
