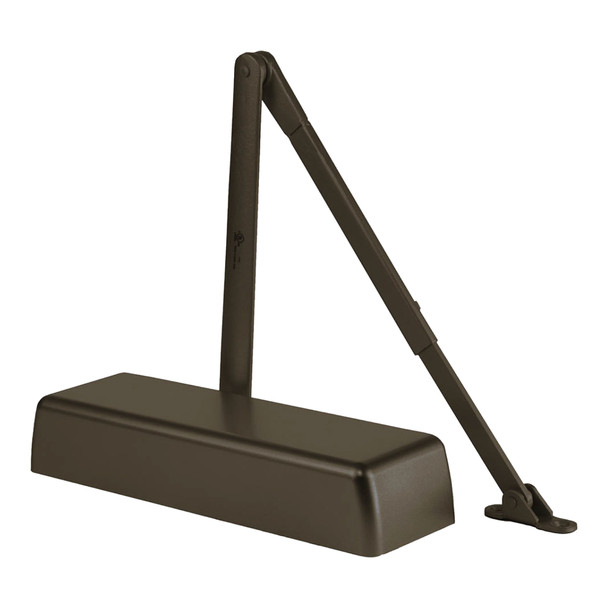

Arrow Regular Surface Door Closer, Hydraulic Tri Mount Push/Pull Side Mounting, Grade 1 (DCN516 690)

(No reviews yet) Write a Review
SKU:
ARR-DCN516-690
MPN:
DCN516 690
Shipping:
Calculated at Checkout
$176.99
Frequently bought together:

Description

Arrow Regular Surface Door Closer, Hydraulic Tri Mount Push/Pull Side Mounting, Grade 1 (DCN516 690)

  • Grade 1 Regular (Double Lever) Surface Closer
  • Hydraulic Tri Mount Push or Pull Side Mounting
  • Double Lever Arm with PA Bracket
  • Plastic Cover
  • Size 1 to 6
  • Dark Bronze Painted Finish
  • Non-Handed

Technical Specs:

  • Type: Surface
  • Technology: Hydraulic
  • Mounting Location: Push or Pull Side
  • Mounting Style: Tri Mount
  • Hold Open: No
  • Closer Size: 1 to 6
  • Arm Type: Double Lever Arm with PA Bracket
  • Hand: Non-Handed
  • Cover: Plastic
  • Through Bolts: Yes
  • Cold Weather Fluid: Yes
  • Product Type: Surface Closers

The Arrow DCN500 Series Heavy Duty Surface Door Closers are ideal for Institutions or other high traffic applications.
The DCN500 is designed for end users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applications

Features:

  • Heavy duty cast iron body.
  • Hardened steel rack and pinion.
  • High tensile steel springs.
  • Staked valves
  • Two non-critical adjusting valves sweep and latch) control closing speed.
  • Backcheck intensity valve.
  • All temperature fluid.
  • Full plastic cover standard.
  • Non-handed for regular, top jamb and parallel arm mount applications.
  • Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
  • DCN5xx-1 Series door closers are supplied with a hold open arm.
  • DCN5xx-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°.
  • DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°.
  • Packaging: one per box and four boxes per carton.
  • 10 year limited warranty.



Sizes (Adjustable):

  • DCN516 closers are adjustable for spring sizes 1 through 6

Certification:

  • UL/cUL listed.
  • UL10C listed for positive pressure to comply with UBC-72 (1997).
  • Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.
